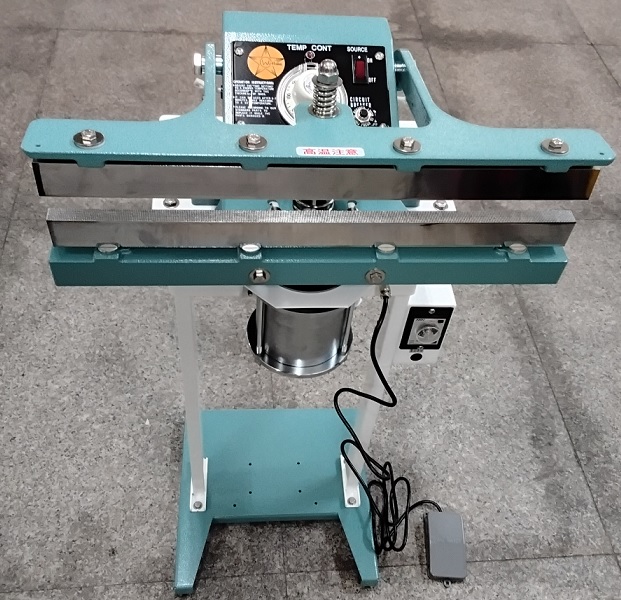

WU-HSING made Electromagnet control Impulse Sealers series are controlled by one stronger electromagnet offers an uniform pressure. Can save the power of operator.
WU-HSING’s made Electromagnet control Impulse Sealers series WNS-XXX are made by metal housing with painting. Equipped with a 2 knobs of PC Board with sealing time and congealing time. A stronger electromagnet offers an uniform pressure for automatic sealing. Impulse sealing must have Congealing time.
Once correct settings have been adjusted (sealing time, congealing time), consistent seals will be maintained automatically. Press the Foot Switch lightly, then sealing & cooling will be finished easier. Ideal for need higher pressure package.
Sealing size: 300mm ~ 900mm
Sealing width: 2.7mm, 5mm (0.8mm for sealing and melting)
Sealing time: 0-1.5 sec.
Congealing time: 1-7 sec.
Single sealing: polyethylene (PE), Polypropylene (PP) and thermoplastic materials
Optional: Stainless steel (SUS#304), Date Imprinter, 10mm sealing width, Timer control, extend pedestal + wheels, Emergency stop switch, protective cover of Electromagnet…
Related sealers: WFS-XXX (powder, frozen products) WNS-XXXT (double-sides sealing), WS-XXXD (direct heat)
Applications: food, electronics, chemicals, pharmaceutical, and hardware components industries
| Specification | WS-300D | WS-450D |
|---|---|---|
| Voltage | 100V/110V/220V/240V | |
| Power (Watt.) | 350W | 450W |
| Max. sealing | 15mm | |
| Warm up time | 10 min | |
| Max. Temp | 300°C | |
| Dimension | 34 *34 *90cm | 46 *34 *90cm |
| Weight | 20 KG | 21 KG |
